Whole Unit Transport and Dual Crane Installation of a Large Cylindrical Acrylic Aquarium

This article is written for publication on the LANHU independent website. Project dimensions and weight are based on the technical information supplied for this case. Route permits, road clearances, crane capacities and site conditions must be verified for the specific destination before any transport or lifting operation.

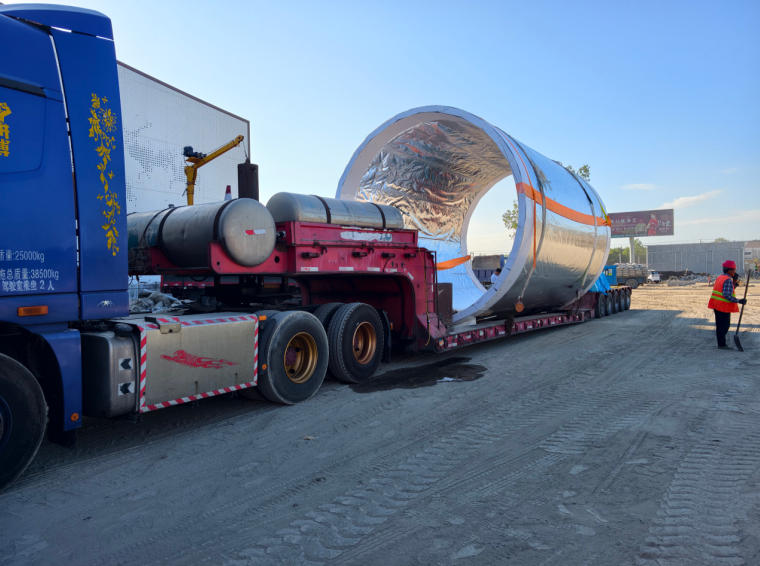

A large cylindrical acrylic aquarium body prepared for whole unit transport on a special trailer.

Project Overview

Transporting a large acrylic aquarium is not simply a logistics task. It is a coordinated engineering process that connects acrylic fabrication, structural protection, route planning, specialist haulage, lifting design and site installation. For the project described in this case study, LANHU produced the cylindrical acrylic body in the factory, completed the body polymerization and seamless joining process under controlled conditions, protected the finished surface and transported the complete unit to the project site.

The aquarium has a diameter of 4500 mm, a height of 8000 mm and a 150 mm acrylic thickness. Its overall transport weight is approximately 17 tonnes based on the project data. Instead of dividing the body into multiple sections for field assembly, LANHU adopted a whole unit transport strategy. The approach reduces the number of site joints and keeps the critical acrylic fabrication work inside the factory environment, where alignment, cleanliness, curing and inspection can be managed more consistently.

Project Technical Data

Why a 4500 mm Diameter Was Selected

The 4500 mm diameter is not an arbitrary aesthetic dimension. It represents a balance between the desired visitor experience, the cylindrical aquarium volume, the structural and architectural interface, and the practical limits of moving a large finished body through real transport infrastructure. A larger diameter may provide more internal volume, but it also increases the transport envelope, turning requirements, clearance risk, lifting radius and permit complexity.

For this project, the special transport vehicle has a maximum operating width of 4500 mm. Selecting a 4500 mm aquarium diameter allowed the whole unit to be planned around the vehicle envelope established for the project. The result is a transport strategy that links the aquarium geometry with the available equipment instead of designing the aquarium first and discovering transport constraints later.

· The diameter supports a large and immersive viewing experience while remaining compatible with the project transport envelope.

· The finished body can be protected and supported on a special trailer without introducing unnecessary site joints.

· The route survey can focus on a defined maximum operating width and identify every location that requires clearance control.

· A controlled 4500 mm envelope helps coordinate permits, escort arrangements, toll station checks and site arrival planning.

· The dimension is project-specific. It should not be treated as a universal legal transport limit for every country or road system.

Factory Polymerization and Seamless Acrylic Joining

The most important quality decision in this project was to complete the acrylic body in the factory. LANHU carried out the body polymerization and seamless joining process before dispatch. In practical terms, this means that the cylindrical form and its critical acrylic joints were created and controlled before the body entered the transport chain.

Factory-controlled joining provides a more stable environment for surface preparation, alignment, polymerization control, curing time, inspection and protective packaging. It also reduces the amount of sensitive acrylic work that must be carried out at an active construction site, where dust, weather, restricted access and coordination with other trades can affect quality.

· Fewer field joints and fewer opportunities for site contamination or misalignment.

· A more predictable factory inspection and protection process before dispatch.

· Better continuity of the curved viewing surface and a clearer quality control record.

· Reduced site installation time compared with transporting multiple acrylic sections and assembling the body on site.

· A single transport and lifting plan that is developed around the final finished geometry.

The 150 mm acrylic thickness stated for this project should be understood as project data, not as a universal rule. Final acrylic thickness must be established by the project design, water depth, geometry, support conditions, loading, safety requirements, local standards and the responsible engineering team.

Why LANHU Chose Whole Unit Transport

Whole unit transport is most valuable when the finished body is large, optically sensitive and difficult to reproduce accurately in the field. It allows LANHU to complete the main acrylic body before delivery and then focus the site operation on protection, lifting, positioning and integration with the prepared architectural structure.

· Geometry control: the finished cylindrical form is maintained from factory dispatch through site placement.

· Joint reduction: the number of critical acrylic joints exposed to site conditions is minimized.

· Quality continuity: the factory inspection record stays connected to the delivered body.

· Shorter site fabrication period: the installation team can concentrate on controlled placement rather than major acrylic fabrication.

· Clearer responsibility: transport, lifting and installation interfaces can be assigned and checked before the vehicle leaves the factory.

This method does not remove the need for engineering controls. A whole unit still requires a route study, protective supports, load restraint, lifting calculations, ground bearing checks, weather monitoring and a site exclusion zone. The benefit is that these controls are built around one known finished object.

Route Engineering Before Departure

A 4500 mm wide cylindrical body cannot be dispatched safely by relying only on a standard navigation route. LANHU treats route analysis as part of the aquarium engineering package. Before departure, the transport team reviews the approved route from the factory to the project site and checks the real geometry of the corridor.

1.  Confirm the final transport envelope, including the aquarium body, protective wrapping, support frame, trailer and any temporary lifting or restraint components.

2.  Review the route alignment, turning radii, road camber, lane widths, bridge approaches, construction zones, temporary barriers and local traffic controls.

3.  Record every toll station on the approved route and verify the clear height and clear width of each toll station, including islands, barriers, canopy edges and lane transitions.

4.  Check overhead utilities, signs, gantries, pedestrian bridges, building canopies, tree branches and other vertical obstructions along the actual vehicle path.

5.  Confirm bridge and pavement restrictions, turning locations, rest or inspection areas, escort requirements, traffic windows and emergency stopping locations.

6.  Review the destination approach, including the gate, internal roads, crane standing areas, ground bearing, temporary ramps and the final installation opening.

The exact toll station count and the measured clear height and clear width of each station are route-specific facts. They must be taken from the approved transport survey and permit dossier for the actual origin and destination. They are not stated as fixed numbers in this article because the project route information was not included in the brief supplied for publication. This distinction is important: a route can be suitable for a 4500 mm operating width in one region and unsuitable in another.

The route file should preserve the measured values, survey date, responsible party, photographs or drawings, permit references and any required traffic-management actions. For a public case study, the verified route summary can be added without publishing sensitive security or operational details.

Special Transport Vehicle and Load Protection

LANHU uses a special transport vehicle selected around the finished geometry and the project weight. In this case, the maximum operating width planned for the vehicle is 4500 mm, matching the stated aquarium diameter. The vehicle and support arrangement must keep the cylindrical body stable, distribute the load correctly and prevent concentrated contact with the acrylic surface.

· Use a suitable low-bed or multi-axle special transport arrangement selected for the verified load and road conditions.

· Support the body at engineered contact zones using protective materials and a restraint method that avoids point loading or abrasion.

· Protect the acrylic surface against dust, impact, weather exposure and contact with metal edges during loading and transit.

· Check axle loading, trailer articulation, braking, turning path and the effect of road camber on the cylindrical body.

· Use route escort and traffic control measures where required by the authority, permit or transport risk assessment.

· Inspect restraints and protective materials at defined intervals and after any significant change in road condition or weather.

The photographs in this case show the finished cylindrical body covered for transport and secured on a specialist trailer. The wrapping is part of the protection strategy; it is not a substitute for engineered supports, verified restraints or a formal transport method statement.

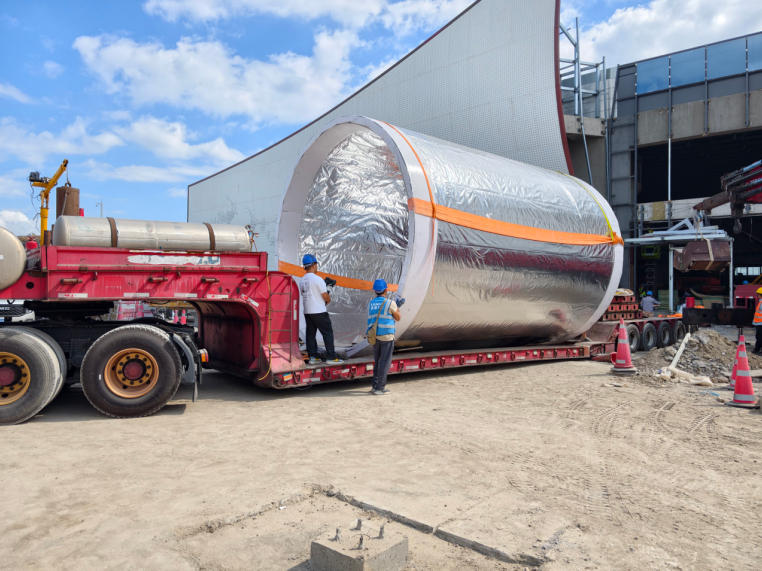

The protected cylindrical acrylic body at the project logistics area before the next transport or installation step.

Site Arrival and Parking Position

The first operation at the destination is not lifting. It is positioning. The vehicle must stop at a location selected in advance so that the two-crane lift can be performed within the approved working area. This location is checked against the final travel path, the crane outrigger positions, the landing point and the structural opening or foundation prepared for the aquarium.

1.  Confirm the arrival time, access gate, traffic controls, ground condition and communication channel with the site manager.

2.  Position the transport vehicle at the pre-agreed stopping point, allowing sufficient space for the two cranes, rigging team, exclusion zone and controlled movement path.

3.  Check ground bearing and levelness under the vehicle and cranes. Install mats or temporary ground protection where required by the lifting plan.

4.  Reconfirm the final aquarium coordinates, orientation, elevation and the clear path into the specified position.

5.  Establish a controlled exclusion zone so that only the appointed lifting and signal team remains inside the operating area.

This sequence matters because a crane lift is affected by radius, boom angle, ground conditions and the presence of other equipment. If the vehicle stops in the wrong location, the lifting radius can increase, the load path can change and the operation may no longer match the approved plan.

Two Crane Lifting and Controlled Placement

Once the vehicle is correctly parked, LANHU coordinates two cranes for the controlled lifting of the cylindrical acrylic body. A two-crane operation is not simply a matter of placing one crane at each end. The cranes, rigging, lifting points, load share, movement speed, communication and landing sequence must be planned as one system.

1.  Verify the lift plan, crane positions, rated capacities, working radii, outrigger setup, ground bearing and weather conditions before rigging begins.

2.  Inspect slings, spreader beams, shackles, soft protection and lifting accessories. Confirm that no rigging component can damage the acrylic surface or interfere with the final landing.

3.  Release transport restraints in the planned order while keeping the body supported and protected. Remove temporary protection only when the lift supervisor confirms that it is safe.

4.  Take the load gradually and perform a controlled trial lift. Check balance, deflection, sling angles, communication and clearance before continuing.

5.  Move the body slowly along the approved path. The signal person or appointed lift director controls the movement, while both crane operators follow one communication protocol.

6.  Guide the aquarium into the specified position, align it with the prepared structure and lower it without shock loading, dragging or uncontrolled rotation.

7.  Complete a post-placement inspection of the acrylic surface, supports, alignment, access interfaces and temporary protection before releasing the cranes.

The final lifting method must be prepared and approved by the responsible lifting engineer and local site team. Crane capacities, sling arrangements and lift radii cannot be inferred from photographs alone. They must be confirmed from the actual equipment certificates, lift plan and site conditions.

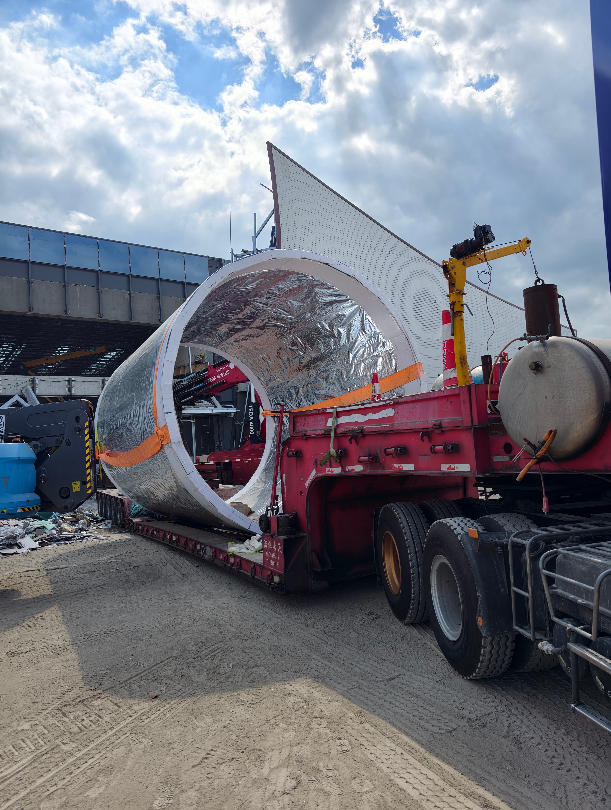

Close view of the protected acrylic cylinder and specialist trailer arrangement during transport preparation.

Lessons from LANHU Experience Including India Airport Projects

LANHU has learned that the success of a large acrylic delivery often depends on decisions made before fabrication is complete. Airport projects in India provide a useful example because access routes can include controlled operating windows, complex traffic interfaces, restricted terminal approaches, strict coordination requirements and limited opportunities to stop or turn a specialist vehicle.

· Start route and site interface planning early enough to influence the aquarium geometry and transport envelope.

· Treat toll stations, gates, canopies, terminal approaches and internal roads as engineering interfaces, not as ordinary driving conditions.

· Coordinate the transport company, site contractor, crane supplier, architect, structural engineer and owner representative around one approved movement plan.

· Keep a contingency plan for weather, traffic restrictions, temporary access changes and unexpected site obstructions.

· Document the actual route checks and site decisions so that the project team can use the experience on future large aquarium deliveries.

This experience is why LANHU links aquarium design, acrylic fabrication, logistics and installation planning. The goal is not only to build a clear acrylic body. The goal is to deliver the finished body to its final position with a controlled, traceable and practical installation process.

Why This Method Matters for Aquarium and Hospitality Projects

Whole unit delivery can be valuable for public aquariums, oceanariums, commercial hotels, retail developments, themed attractions and luxury residences where the aquarium is a major architectural feature. A large cylindrical aquarium is often positioned at a highly visible focal point. Its geometry, optical quality and alignment affect the visitor experience as well as the surrounding architecture.

By planning the transport envelope at the design stage, the project team can make better decisions about the building opening, access route, temporary works, crane standing area and final support structure. This reduces the chance that a finished aquarium will arrive at a site where the last few meters cannot be completed safely.

Frequently Asked Questions

Can a 4500 mm diameter cylindrical acrylic aquarium be transported as one complete unit?

It can be considered for whole unit transport when the route, vehicle, permits, support arrangement and site conditions are approved for the project. The 4500 mm dimension is project-specific and is not a universal transport allowance.

Why complete the acrylic joining in the factory?

Factory polymerization and seamless joining provide better control of cleanliness, alignment, curing, inspection and surface protection than major acrylic joining work performed in an active construction site.

Why are two cranes used at the site?

Two coordinated cranes can provide a controlled lift path for a large long or cylindrical body, subject to an approved lift plan, verified capacities, suitable rigging and competent supervision.

How many toll stations are on the route?

The number is route-specific. It must be taken from the approved route survey, together with the clear height and clear width measured at every toll station. It should not be guessed from a general map or copied from another project.

What information should an owner provide to LANHU?

Useful early information includes the destination, site plan, access gate, final aquarium coordinates, opening dimensions, foundation or support details, available crane areas, delivery windows and any local traffic or permit restrictions.

Conclusion

The transport and installation of a large cylindrical acrylic aquarium should be planned as one integrated engineering operation. For this case, the 4500 mm diameter, 8000 mm height, 150 mm acrylic thickness and approximately 17 tonne overall transport weight were connected to a whole unit delivery strategy, a special transport vehicle with a 4500 mm maximum operating width, a route survey, protected handling and a two-crane placement plan.

The key lesson is simple: large acrylic aquarium transport begins before the truck moves. It begins when the aquarium geometry, factory joining method, route envelope, site access and lifting plan are reviewed together. LANHU can support project feasibility, acrylic fabrication, aquarium engineering, transport coordination, lifting planning and site installation for public aquarium, oceanarium, hotel, commercial and private aquarium projects.
